Houdini - Reference Over Network

🕸️ REF OVER NET 🌀

Overview Video Guide

https://www.youtube.com/watch?v=2cxgZz6BQPw

🎯Feature Summary

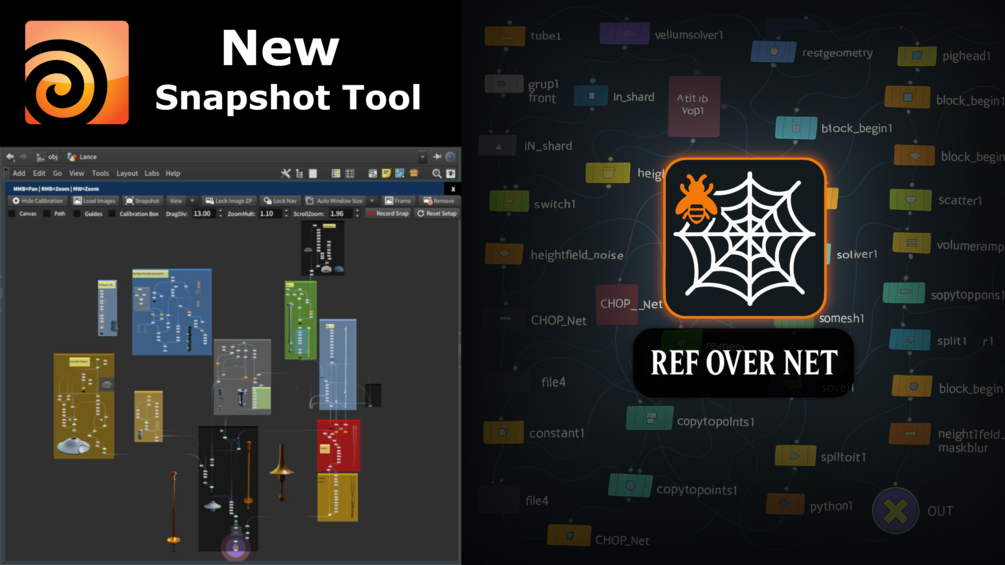

A Houdini tool to overlay images directly on the Network Editor.

---

🔹 Primary Purpose

- Overlay images on top of the Houdini Network Editor to provide a visual reference during network design.

- Capture a preview of what a specific stage of the network looks like in the viewport, offering a snapshot of the current state.

- Designed for adding reference images, layout guides, visual annotations, and for saving parameter settings for later review.

- Facilitates documentation and an iterative workflow by allowing you to record and recall configurations directly from the network view.

- Operates in a custom overlay window (with an adjustable, drawn border for resizing) that aligns with the Network Editor, ensuring the reference remains contextually integrated with your node network.

---

🖼️ Image Management

- Load Images Button – Click the "Load Images" button to import multiple images into a mosaic-style canvas.

- Drag images to reposition them anywhere over the network.

- Scale individual images via border-drag actions.

- Use Snap-to-Center and Frame-to-Fit features (triggered by the "Frame" button) to quickly adjust the view.

- Remove selected images using the "Remove" button.

---

🧭 Navigation + Interaction

- MMB Drag – Pan the entire canvas smoothly.

- RMB Drag – Perform pivot-centered exponential zoom.

- Mouse Wheel Zoom – Enjoy smooth zooming with scroll gestures.

- Left-Click Actions:

- Select an image.

- Initiate drag or scaling operations.

- Deselect by clicking on the canvas or image margin.

---

🧰 Snapshot Tools

- View Mode: Captures the Houdini Scene Viewer with transparency.

- UI Mode: Captures the full Houdini interface.

- Choose the desired mode from the snapshot mode combo (options "View" or "UI"), then click the "Snapshot" button.

- Snapshots are automatically loaded into the overlay as new reference images.

- Snap files are auto-saved with incrementing filenames in $HIP/Ref.

---

🧩 Calibration & Visual Aids

- Calibration Image Toggle – Use the "Calibration Box" checkbox to toggle a calibration image (e.g., NetEditor_Height.JPG) for additional reference.

- Snap Boxes – Pre-set sizes (like 1050px, 700px, etc.) with a cycling index to assist with layout.

- Canvas Outline Toggle – Activate the "Canvas" checkbox to display the complete boundary of the image layout.

- Guide Lines – Enable the "Guides" checkbox for better visual alignment.

- Debug Popup – Activate the "Path" checkbox to display a popup with the current network path and update count.

---

⚙️ Control Panel UI

- Toolbar Buttons:

- "Load Images" Button – Import images into the canvas.

- "Snapshot" Button – Capture snapshots (choose between View/UI mode via the combo box).

- "Frame" Button – Automatically adjust the view to frame all images.

- "Remove" Button – Delete the currently selected image.

- "Show Calibration" Button – Toggle the calibration panel (changes to "Hide Calibration" when active).

- "Lock Image ZP" Button – Lock/unlock image zoom/pan.

- "Lock Nav" Button – Lock/unlock navigation within the canvas.

- Window Mode Combo – Select the window mode from "Auto Window Size", "Lock Window Size", or "Unlock Window Size".

- Calibration Panel Controls:

- Adjust parameters such as drag_divisor, zoom_multiplier, and scroll_zoom_step using the provided spin boxes.

- "Record Snap" Button – Record current calibration settings.

- "Reset Setup" Button – Reset calibration data (stored in $HOME/image_tool_calibration.json).

---

🪟 Window Behavior

- Custom Overlay Window – This window aligns with the Houdini Network Editor.

- It uses custom-drawn chrome (no standard OS title bar), yet includes an adjustable border for resizing.

- Auto-Resize Mode – Synchronizes automatically with the bounds of the Network Editor.

- Manual Resizing – Adjust the window via drawn border handles with visual feedback.

- Option to lock/unlock window size and position.

- Window and Canvas Configurations are saved per HIP/network context, ensuring consistency between sessions.

---

💾 State Persistence

- Each network path gets its own configuration (layout, zoom level, offsets, etc.), stored as JSON in $HIP/Ref/image_tool_config.json.

- Session state is restored so you can resume your work exactly where you left off.

---

📓 Logging

- All activity is logged to: $HIP/Ref/image_tool.log
